Get started with Tatin¶

Install¶

]Activate Tatin

Look for registries¶

Initially Tatin knows only the principal and test Tatin registries.

      ]TATIN.ListRegistries
 Alias       URL                      ID
 ----------  -----------------------  -------
 tatin       https://tatin.dev/       29fbeb2 ...
 tatin-test  https://test.tatin.dev/  2a28231 ...

When you want to start using other Tatin registries, remote or on your local machine, edit the user settings.

Look for packages¶

List all the packages on the principal registry.

      ]TATIN.ListPackages
 Registry: https://tatin.dev              ≢ 60
 Group & Name                 # major versions
 ------------                 ----------------
 abrudz-sort                                 1
 aplteam-ADOC                                1
 aplteam-APLGit2                             1
 aplteam-APLGUI                              1
 aplteam-APLProcess                          1
 ...

You can restrict the listing to a single group.

]TATIN.ListPackages -group=davin

Packages are tagged.

      ]TATIN.ListTags
 All tags from https://tatin.dev
 -------------------------------
  data
  grid
  import
  page
  read
  ...

      ]TATIN.ListPackages -tag=markdown
 Registry: https://tatin.dev               ≢ 4
 Group & Name                 # major versions
 ------------                 ----------------
 aplteam-Laguntza                            2
 aplteam-MarkAPL                             3

Install packages¶

Suppose you want to use the MarkAPL package in an application you are developing, which we will call a project. Suppose the project lives in /Foo.

Install the package as part of the Foo project.

      ]TATIN.InstallPackages MarkAPL /Foo/packages

Sure you want to create and install into
/Foo/packages ? (Y/n) Y
 Installed into /Foo/packages:
  aplteam-MarkAPL-13.1.0
 In order to load all dependencies (including newly installed ones) into the WS execute:
       ]TATIN.LoadDependencies "/Foo/packages"

The /Foo/packages folder has been created and contains:

apl-buildlist.json
apl-dependencies.txt
aplteam-APLTreeUtils2-1.4.0
aplteam-CommTools-1.8.1
aplteam-FilesAndDirs-5.8.0
aplteam-MarkAPL-13.1.0
aplteam-OS-3.1.1

(You might see different version numbers.)

Load packages¶

MarkAPL has been installed in the project. Now load it into the active workspace.

MarkAPL is one (the only one) of the dependencies of Foo.

      ]tatin.LoadDependencies /Foo/packages #.Foo
#._tatin.aplteam_MarkAPL_11_0_1

Documentation¶

We now have #.Foo.MarkAPL loaded – but how do we use it?

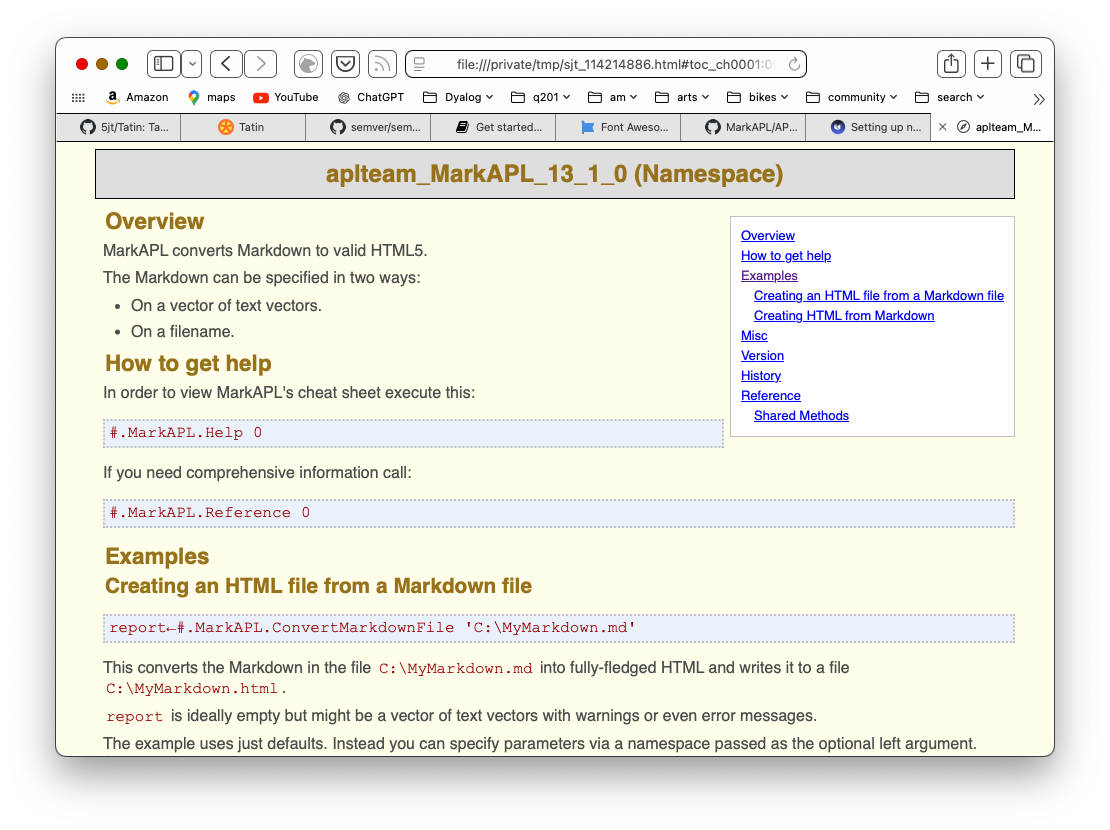

      ]ADoc #.Foo.MarkAPL
]Open /private/tmp/sjt_114214886.html
Watch your browser

      ]Open /private/tmp/sjt_114214886.html

Test¶

Test an example from the documentation.

      MyMarkdown←'# MarkAPL' 'All about **_MarkAPL_**'
      (html ns)←#.Foo.MarkAPL.Markdown2HTML MyMarkdown
      ↑html
<div class="h_tag">
<a href="#markapl" id="markapl" class="autoheader_anchor">
<h1 data-id="MarkAPL">MarkAPL</h1>
</a>
</div>
<p>All about <strong><em>MarkAPL</em></strong></p>
      ns
#._tatin.aplteam_MarkAPL_13_1_0.[Namespace]

Deactivate¶

To remove Tatin and/or Cider from the installation folder:

]Deactivate [all|cider|tatin] [-versionagnostic]

Installing several packages at once¶

Note that InstallPackages accepts several package IDs, separated by commas:

      ]tatin.InstallPackages Tester2,MarkAPL,Laguntza /Foo/packages

This will install three packages and all their dependencies at once. You might find this significantly faster than installing them one-by-one.

]tatin.InstallPackages F@FilesAndDirs

Checking out a package: LoadPackages¶

Let's assume that before actually installing it, you first want to check whether the package MarkAPL suits your needs. In this case you might not want to install it (yet) but just to load it into the workspace.

That can be achieved with the LoadPackages user command. It loads the package into the workspace.

Notes:

• Loading a package in this way has one major purpose: to investigate it.

• Loading a package might well be different from installing a package: when loading a package, the precise versions of dependency packages will be loaded, but when a package is installed, that is not necessarily the case.

This is discussed in Load-and-update-strategy.

Let's load the MarkAPL package into the workspace; for that we need to specify a URL and optionally a target namespace:

      ]tatin.LoadPackages [tatin]MarkAPL -verbose
  Attempting to install https://tatin.dev/aplteam-MarkAPL-10.0.0...
  Establish dependencies...
  4 dependencies identified
  Fetching https://tatin.dev/aplteam-MarkAPL-10.0.0...
  Unzipping C:\Users\username\AppData\Local\Temp\...
  Add aplteam-MarkAPL-10.0.0 to dependency file...
  Fetching https://tatin.dev/aplteam-APLTreeUtils2-1.1.0...
  ...

]tatin.LoadPackages [tatin]MarkAPL
4 packages (including dependencies) loaded

Here we did not specify a target namespace, so the package was loaded into #. If the target namespace is something like #.MyTests, it may or may not exist. If it does not, Tatin will create it.

Tatin has created a reference named MarkAPL in the target namespace #:

      #.⎕nl ⍳16
MarkAPL
_tatin

That reference points to the namespace that holds the package as such, which is loaded into _tatin: this is the namespace Tatin uses to manage all packages.

The name of the namespace carries the version number:

      #.MarkAPL
#._tatin.aplteam_MarkAPL_10_0_0

      #._tatin.⎕nl ⍳16
aplteam_APLTreeUtils2_1_1_0
aplteam_FilesAndDirs_5_0_0
aplteam_MarkAPL_10_0_0
aplteam_OS_3_0_0

No matter whether the APL code of a package is...

• a single function
• a single operator
• a bunch of functions and operators
• a single namespace (ordinary or scripted)
• a bunch of namespaces
• a single class
• a bunch of classes
• a mixture of all these APL objects,

...they are going to live in the top namespace of a package.

But Tatin will also inject references into that namespace pointing to the dependencies, therefore:

      #._tatin.aplteam_MarkAPL_11_0_0.⎕nl⍳16
APLTreeUtils2
FilesAndDirs
MarkAPL

MarkAPL is the package we asked for. It depends on two packages, APLTreeUtils2 and FilesAndDirs. For these two packages, references are injected. FilesAndDirs depends on OS, but because that is not required by MarkAPL, no reference to OS is injected into aplteam_MarkAPL_11_0_0., but you would find such a reference in #._tatin.aplteam_FilesAndDirs_5_0_1.

Misc¶

Scanning Registries¶

The fact that Tatin scans Registries in order to find a package can be put to good use when developing packages: you can run your own Tatin server on, say, your own machine, and give it the highest priority. You can then publish new versions of a package on that server first.

That way Tatin would find packages on your local machine even when they are not loaded as principal packages but just as dependencies.

Later, when the package is ready, you could publish it to, say, the principal Tatin server on https://tatin.dev, and — don't forget that step! — delete it from your local Registry.

]ListVersions [*]example-versions

The fact that Registries with a priority of 0 are not scanned by Tatin allows you to include a Registry like https://test.tatin.dev in your user settings. You don't really want that Registry to participate in a scan, but that way you can still execute commands like ]tatin.ListPackages etc. on it.

Deprecated packages¶

Every piece of software will become obsolete one day. Packages are no exception. If a package is not needed anymore, or is obsolete because there is a better one available, it's time to mark it as deprecated.

This can be done with the user command ]TATIN.DeprecatePackage. In short, what the user command does is to publish the latest version available yet as a new version with an increased minor version number and an injected flag deprecated←1.

For example, let's assume these three packages are published:

aplteam-Foo-1.0.0
aplteam-Foo-1.1.0
aplteam-Foo-1.1.1

Executing:

]TATIN.DeprecatePackage https://your-Registry/aplteam-Foo-1

will publish a new version aplteam-Foo-1.2.0, which is almost identical to version 1.1.1 except that it has two additional properties in its config file: deprecated with the value 1 and deprecate_comment, which carries the comment if you've specified one with -comment=; this should be used to explain why a package got marked as deprecated, so it will be something along the lines of "See package Foo-Boo".

From now on both the "Packages" web page and ]TATIN.ListPackages won't list these four packages anymore.

Note that ]TATIN.ListDeprecated is designed to list just the deprecated packages. If you want the list to include also the earlier versions — which are now sort of hidden by 1.2.0 — then you need to specify the -all flag.

With -all, a matrix with two columns rather than one is returned, with the second column carrying an asterisk for those packages that actually do carry deprecated←1 in their config file. That would be at least the very last one.

Side effects of deprecating a package¶

If you try to load or install a package that is marked as deprecated, then you will be asked whether you really want that, but if you insist, then you will get what you asked for.

Note however, that this is only true when you ask explicitly for the last package (the one with deprecated←1).

In our example that would be:

]TATIN.LoadPackages https://your-registry/aplteam-Foo-1

This statement:

]TATIN.LoadPackages https://your-registry/aplteam-Foo

would yield the same result, but only because there is just one major version anyway.

If you ask explicitly for an earlier version than the deprecated one, then that version would be loaded (or installed) without further ado, because Tatin would just assume that you know what you are doing.

Note that the API functions for loading / installing packages would not complain or warn you at all.

Tatin Variables¶

For every package Tatin will establish a couple of constants. Because APL has no concept of constants, they are emulated via niladic functions.

They are injected into a namespace TatinVars which in turn is injected into the top package namespace.

Strictly speaking, TatinVars is a misnomer because the namespace carries just functions, and not a single variable, but all but one of those act as constants, and the exception GetFullPath2AssetsFolder was introduced at a later stage, so it was decided to stick with the name TatinVars for compatibility.

Note that we refer to, say, HOME as a character vector because the niladic function HOME returns a character vector.

ASSETS¶

The path to the package's assets relative to HOME. It is empty in case there are no assets.

See also the GetFullPath2AssetsFolder function.

CONFIG¶

This is a simple character vector that stems from the file apl-package.json of the given package.

DEPENDENCIES¶

A vector of character vectors with the package IDs of the packages the package in question depends on.

GetFullPath2AssetsFolder¶

This is a function which returns the result of the expression HOME,'/',ASSETS if both HOME and ASSETS are not empty and HOME exists on disk. If HOME is empty or does not exist on disk then just ASSETS is returned.

When accessing assets, you are advised to always use the GetFullPath2AssetsFolder function. Why? Imagine the following scenario as an example: you've loaded packages into a clear workspace, set ⎕WSID and then saved that WS. Later you make sure that the assets folder of the package becomes a sibling of the workspace. You might then move the WS with the assets folder elsewhere, even to a different machine. The expression HOME,'/',ASSETS would then fail.

But the function GetFullPath2AssetsFolder would not find HOME and therefore return just ASSETS, and that allows you to still access the assets successfully, assuming that you changed the current directory to where the workspace was loaded from.

HOME¶

Is a character vector holding the path of a folder that hosts the package.

There is an exception: when the package was brought into the workspace with LoadPackages rather than LoadDependencies that has no assets. This is because without assets LoadPackages loads the package into a temp folder, brings the package into the WS and then deletes the temp folder, because without assets there is no need to leave a footprint behind.

In this case HOME returns an empty vector.

ID¶

The full package name. This will include a build ID if there is any, so it is not necessarily identical with the package ID.

LX¶

In a package config file, a function can be defined on the lx parameter. Such a function would be executed after the package was loaded. The purpose of the function is to perform some sort of initialisation.

If such a function returns a result, then it is assigned to LX in the TatinVars namespace.

Note that LX does not exist in case no such function is defined, or the function did not return a result.

URI¶

Character vector that holds the address of a Tatin server the package was loaded from, or the full name of a ZIP file.
